Overview:
- 1U rackmount
- 8x Gigabit Ethernet
- 1x SFP cage
- 9 cores x 1.2GHz CPU
- 1GB RAM
- RouterOS L6

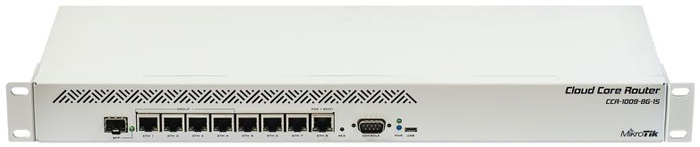

The CCR1009 is a powerful Ethernet router based on the cutting edge TILERA 9 core CPU.
It comes with 1GB of RAM, eight Gigabit Ethernet ports (Ether1-4 are in a Switch group), and one SFP cage (SFP module not included).

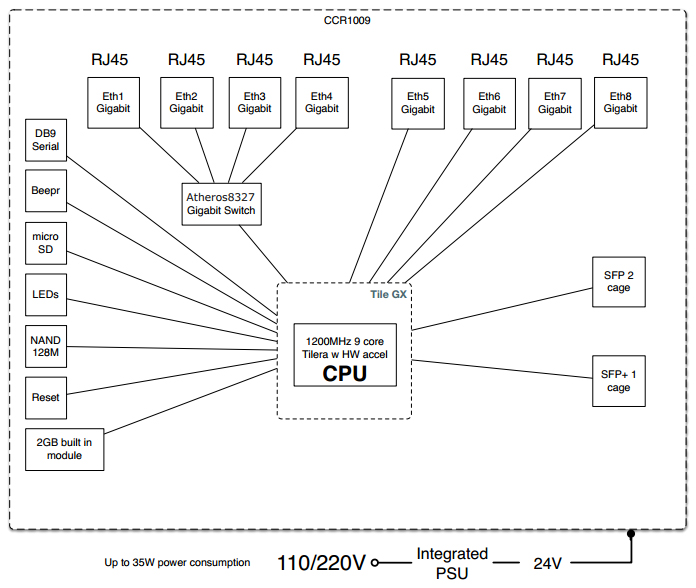

Block Diagram:
Specifications:
| Feature / Model | CCR1009-8G-1S | CCR1009-8G-1S-1S+ |
|---|---|---|
| CPU | Tilera TILE-Gx8009 CPU (9-cores, 1.2Ghz per core) | |
| Memory | 1GB DDR3 800 MHz RAM | 2GB DDR3 800 MHz RAM |
| Ethernet | Eight 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X | |
| SFP | 1x SFP cage | 1x SFP cage, 1x SFP+ cage |
| Expansion | microUSB port | microUSB port, SmartCard slot, MicroSD slot |
| Storage | 128MB Onboard NAND | |
| Serial port | One DB9 RS232C asynchronous serial port | |
| Extras | Reset switch; beeper; voltage, current and temperature monitoring; speed controlled fan | Reset switch; beeper; voltage, current and temperature monitoring; speed controlled fan, LCD |
| Power options | 1x IEC C14 power jack AC 110/220V, PoE in 12-58V, 802.3af/at compliant | 2x IEC C14 power jacks AC 110/220V, PoE in 12-58V, 802.3af/at compliant |
| Max power consumption | 34W (with loaded SFP) | 35W (with loaded SFP) |
| Unit dimensions | 444 x 175 x 47mm | |
| Temperature | -20C - +60C | |
| Power consumption | 34W (with loaded SFP) | 35W |
| Operating System | MikroTik RouterOS v6 (64bit), Level 6 license | |
| Package includes |
|
|
 IEC cord |
 Rack ears |
 USB OTG cable |
Performance Test Results:
| Performance Test Results | |||||||
|---|---|---|---|---|---|---|---|
| CCR1009-8G-1S | RouterOS v6.2 | ||||||
| Model | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | fast path | 11,249.0 | 7,379.3 | 2,200.0 | 9,328.0 | 974.0 | 11,968.5 |
| Bridging | 25 bridge filter rules | 1,509.0 | 989.9 | 1,434.0 | 6,080.2 | 974.0 | 11,968.5 |
| Routing | fast path | 9,931.0 | 6,514.7 | 1,982.0 | 8,403.7 | 974.0 | 11,968.5 |
| Routing | 25 Simple Queues | 1,942.0 | 1,274.0 | 1,789.0 | 7,585.4 | 974.0 | 11,968.5 |
| Routing | 25 Firewall filter rules | 765.0 | 501.8 | 711.0 | 3,014.6 | 614.0 | 7,544.8 |
Documentation:
Download the MikroTik CCR1009 Series Data Sheet (PDF).
