MikroTik RB951-2n
Home wireless access point
MikroTik Products
Click here to jump to more pricing!
Overview:

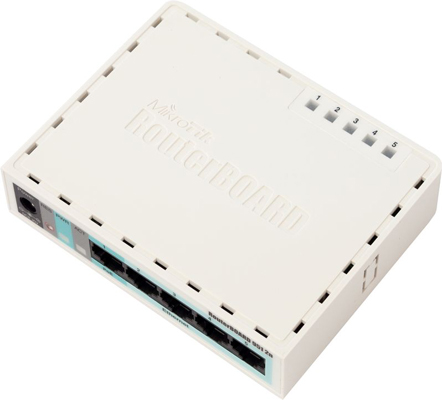

The RB951-2n is the home wireless AP you have been waiting for! It is small and compact, has five Ethernet ports and a 802.11b/g/n wireless AP with an antenna built in.
This model is much smaller than the more powerful RB751U-2HnD model, the RB951-2n looks exactly like our popular RB750 series. The device is very small and will look good in any home or office, wall mounting anchor holes are provided.
Specifications:
| RB951-2n Specifications | |
|---|---|
| CPU | Atheros AR9331 300MHz CPU |
| Memory | 32MB DDR SDRAM onboard memory |
| Ethernet | Five independent 10/100 Ethernet ports |
| LEDs | Power, Wireless activity, 5 Ethernet LEDs |
| Power options | PoE: 8-30V DC on Ether1 (Non 802.3af). Jack: 8-30V DC |
| Dimensions | 113 x 89 x 28mm |
| Weight | Without packaging and cables: 142g |
| Power consumption | Up to 3W |
| Operating temperature | -20C to +50C |
| Operating System | MikroTik RouterOS, Level4 license |
| Box contains |
|
| Wireless Specifications | |
|---|---|
| Antenna | 1x1 MIMO with two onboard PIF antennas, max gain 1.5dBi |
| RX sensitivity | 802.11b: 17dBm @ 11Mbps 802.11g: 15dBm @ 6Mbps to 11 dBm @ 54 Mbps 802.11n: 15dBm @ MCS0 to 9dBm @ MCS7 40MHz |
| TX power | 802.11g: -92dBm @ 6Mbit/s to -73dBm @ 54Mbit/s 802.11n: -92 dBm @ MCS0 to -67 dBm @ MCS7 |
| Modulations | OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK |
Performance Test Results:
| Performance Test Results | |||||||
|---|---|---|---|---|---|---|---|
| RB951-2n (400Mhz) | 100M port test | RouterOS | |||||
| Model | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 146.7 | 96.2 | 112.4 | 476.6 | 40.0 | 491.5 |
| Bridging | 25 bridge filter rules | 49.6 | 32.5 | 49.1 | 208.2 | 40.0 | 491.5 |
| Routing | none (fast path) | 142.4 | 93.4 | 451.9 | 451.9 | 40.0 | 491.5 |
| Routing | 25 simple queues | 80.3 | 52.7 | 326.1 | 326.1 | 40.0 | 491.5 |
| Routing | 25 ip filter rules | 35.8 | 35.7 | 151.4 | 151.4 | 33.2 | 408.0 |
Documentation:
Download the MikroTik RB951-2n Data Sheet (PDF).
