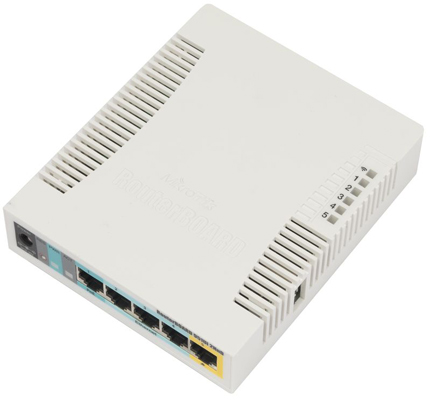

MikroTik RB951Ui-2HnD
Home wireless SOHO access point
MikroTik Products
Click here to jump to more pricing!
Overview:
The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in.
It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Specifications:
| RB951Ui-2HnD Specifications | |
|---|---|
| Features | RB951Ui-2HnD (USB, power injector, USB, 2GHz, 802.11n, dual chain) |
| CPU | Atheros AR9344 600MHz CPU |
| Memory | 128MB DDR2 onboard memory |
| Ethernet | Five independent 10/100 Ethernet ports |
| LEDs | Power, NAND activity, 5 Ethernet LEDs, wireless activity LED |
| Power in | PoE: 8-30V DC on Ether1 (Non 802.3af). Jack: 8-30V DC |
| Power out | PoE passive on port 5, same voltage as input. |
| Dimensions | 113 x 138 x 29mm |
| Weight | Without packaging and PSU: 232g, full weight in package: 420g |
| Power consumption | Up to 7W |
| Operating temperature | -20C to +50C |
| Operating System | MikroTik RouterOS, Level4 license |
| Box contains |
|
| Wireless Specifications | |
|---|---|
| Antenna | 2x2 MIMO PIF antennas, max gain 2.5dBi |
| RX sensitivity | 802.11g: -96dBm @ 6Mbit/s to -80dBm @ 54Mbit/s 802.11n: -96dBm @ MCS0 to -78dBm @ MCS7 |
| TX power | 802.11g: 30dBm @ 6Mbps to 25dBm @ 54 Mbps 802.11n: 30dBm @ MCS0 to 23dBm @ MCS7 |
| Modulations | OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK |
Performance Test Results:
| Performance Test Results | |||||||
|---|---|---|---|---|---|---|---|
| RB951Ui-2HnD (600Mhz) | Gigabit port test | RouterOS | |||||
| Model | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 269.6 | 176.9 | 116.5 | 494.0 | 40.0 | 491.5 |
| Bridging | 25 bridge filter rules | 87.6 | 57.5 | 86.0 | 364.6 | 40.0 | 491.5 |
| Routing | none (fast path) | 226.9 | 148.8 | 116.5 | 494.0 | 40.0 | 491.5 |
| Routing | 25 simple queues | 106.6 | 69.9 | 103.9 | 440.5 | 40.0 | 491.5 |
| Routing | 25 ip filter rules | 60.5 | 39.7 | 59.6 | 252.7 | 40.0 | 491.5 |
Documentation:
Download the MikroTik RB951Ui-2HnD Data Sheet (PDF).
