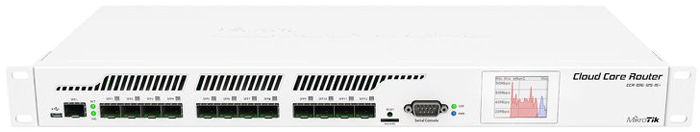

MikroTik Cloud Core Router CCR1016-12S-1S+
Industrial grade router with cutting edge 16 core Tilera CPU, twelve SFP ports and one SFP+ port

MikroTik Cloud Core Router CCR1016-12S-1S+

MikroTik Products
MikroTik Ethernet Routers
MikroTik Cloud Core Router CCR1016-12S-1S+
1U rackmount, 12x SFP cage, 1x SFP+ cage, 16 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, RouterOS L6
#CCR1016-12S-1S+
Get a Quote!

Click here to jump to more pricing!

Overview:

  • 1U rackmount
  • 12x SFP ports for 1 Gigabit connectivity
  • 1x SFP+ port for 10 Gigabit connectivity
  • 16 core Tilera CPU, 1.2GHz clock per core
  • 12 Mbytes total on-chip cache
  • State of the art TILE GX architecture
  • Ports directly connected to CPU
  • 1U rackmount case
  • Color touchscreen LCD display
  • Two power supplies for redundancy

CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.

Specifications:


CCR1016-12S-1S+ Specifications
CPU Tilera Tile-Gx16 CPU (16-cores, 1.2Ghz per core)
Memory 2GB built-in RAM
Ethernet Twelve SFP ports and one SFP+ port
Expansion microUSB port
Storage 128MB Onboard NAND
Serial port One DB9 RS232C asynchronous serial port
Extras Beeper; voltage, current and temperature monitoring, fan, SD Card slot
Power options 2x IEC C14 standard PSU units built in, 110/220V
Board dimensions 290 x 155mm
Temperature Max ambient temperature 50° @ 1.2GHz; 70° @ 1GHz CPU core frequency
Operating System MikroTik RouterOS v6, Level 6 license
Power consumption 44W (with loaded SFP)
Box contains
  • Router in a 1U case with LCD
  • 2x IEC power cables
  • RJ45 SFP coper module
  • Rackmount ears
Included parts
IEC cord
IEC cord
RJ45 SFP coper module
RJ45 SFP coper module

Performance Test Results:

Performance Test Results
CCR1016-12S-1S+ All port test RouterOS v6.7rc1
Model Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 16,709.0 10,961.1 4,695.0 19,906.8 1,624.0 19,955.7
Bridging 25 bridge filter rules 2,493.0 1,635.4 2,362.0 10,014.9 1,624.0 19,955.7
Routing none (fast path) 12,001.0 7,872.7 4,695.0 19,906.8 1,624.0 19,955.7
Routing 25 simple queues 3,133.0 2,055.2 2,845.0 12,062.8 1,624.0 19,955.7
Routing 25 ip filter rules 1,227.0 804.9 904.0 3,833.0 854.0 10,494.0

Documentation:

Download the MikroTik CCR1016-12S-1S+ Data Sheet (PDF).
