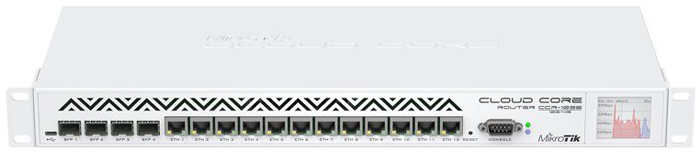

MikroTik Cloud Core Router CCR1036-12G-4S-EM
Carrier grade router with a cutting edge 36 core Tilera CPU, four SFP ports and twelve Gigabit Ethernet ports

MikroTik Cloud Core Router CCR1036-12G-4S-EM

MikroTik Products
MikroTik Ethernet Routers
MikroTik Cloud Core Router CCR1036-12G-4S-EM
1U rackmount, 12x Gigabit Ethernet, 4x SFP cages, LCD 36 cores x 1.2GHz CPU, 16GB RAM, 24 mpps fastpath, Up to 16Gbit/s throughput, RouterOS L6
#CCR1036-12G-4S-EM
Get a Quote!

Click here to jump to more pricing!

Overview:

  • 1U rackmount case
  • 12x Gigabit ports
  • 4x SFP ports
  • Color touchscreen LCD
  • Ports directly connected to CPU
  • 16GB (2x8GB) of RAM
  • 36 core CPU
  • 1.2GHz clock per core
  • 12 Mbytes total on-chip cache
  • State of the art TILE GX architecture
  • 8 mpps standard forwarding
  • 24 mpps fastpath forwarding (wire speed for all ports)
  • Up to16Gbit/s throughput

CCR1036-12G-4S-EM is an carrier grade router with a cutting edge 36 core Tilera CPU! Unprecedented power and unbeatable performance - this is our new flagship device. Over 20 times faster than our previous top model, the Cloud Core supports throughput of up to 24 million packets per second, or up to 16 gigabits - full wire speed.

The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, serial console and a USB port. A color touchscreen displays device status, traffic graphs, or provide access to simple configuration options.

It has two SODIMM slots, by default it is shipped with 16GB of RAM, but has no memory limit in RouterOS. It comes with power supply and 1U rackmount case.

The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

Block Diagram:

CCR1036 Block Diagram

Specifications:

Feature / Model CCR1036-12G-4S CCR1036-12G-4S-EM
CPU Tilera Tile-Gx36 CPU (36-cores, 1.2Ghz per core)
Memory Two SODIMM DDR3 slots, 2x 2GB DDR3 10600 modules installed Two SODIMM DDR3 slots, 2x 8GB DDR3 10600 modules installed (16GB total)
Ethernet Twelve 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
SFP Four 1.25G Ethernet SFP cage (Mini-GBIC; SFP module not included)
Expansion microUSB port, host and device mode
Storage 1GB Onboard NAND
Serial port One DB9 RS232C asynchronous serial port
Extras Reset switch; speed controlled fan; beeper; voltage, current and temperature monitoring
Power options IEC C14 standard connector 110/220V (PSU included), up to 60W power consumption
Board dimensions 355 x 145 x 55mm
Temperature Max ambient temperature 50° @ 1.2GHz; 70° @ 1GHz CPU core frequency
Operating System MikroTik RouterOS v6 (64bit), Level 6 license
Box contains
  • Router in a 1U case with LCD
  • PSU
  • Power cable
  • USB cable
Included parts
IEC cord
IEC cord
USB OTG cable
USB OTG cable

Performance Test Results:

Performance Test Results
CCR1036-12G-4S-EM (1200Mhz) All port test RouterOS
Model Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 23,808.0 15,618.0 3,759.0 15,938.2 1,299.1 15,963.3
Bridging 25 bridge filter rules 5,857.2 3,842.3 3,759.0 15,938.2 1,299.1 15,963.3
Routing none (fast path) 23,808.0 15,618.0 3,759.0 15,938.2 1,299.1 15,963.3
Routing 25 simple queues 7,078.8 4,643.7 3,759.0 15,938.2 1,299.1 15,963.3
Routing 25 ip filter rules 2,485.4 1,630.4 2,315.3 9,816.9 1,299.1 15,963.3

Documentation:

Download the MikroTik CCR1036-12G-4S-EM Data Sheet (PDF).
