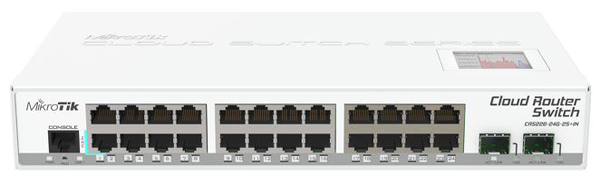

MikroTik CRS226-24G-2S+IN
Twenty-four Gigabit Ethernet ports cloud router switch with two SFP+ ports - desktop enclosure
MikroTik Products
MikroTik Switches
MikroTik Cloud Router Switch CRS226-24G-2S+ - Desktop Enclosure
#CRS226-24G-2S+IN
Get a Quote!
Get a Quote!
Click here to jump to more pricing!
Overview:
- 24x Gigabit Ethernet layer 3 Smart Switch
- 2x SFP+ cages
- Color touchscreen LCD
- 400MHz CPU
- 64MB RAM
- Metal desktop case
- RouterOS L5
Cloud Router Switch is our new member of our Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes. The CRS226 uses a new class of switch chips, which allows us to have two SFP+ ports for 10G connectivity.
The CRS226 uses a new class of switch chips, which allows us to have two SFP+ ports for 10G connectivity.
- Fully manageable L3 switch, full wire speed switching
- Configure ports as switch, or for routing
- If required, full RouterOS power right there
- SFP+ ports for 10G connectivity

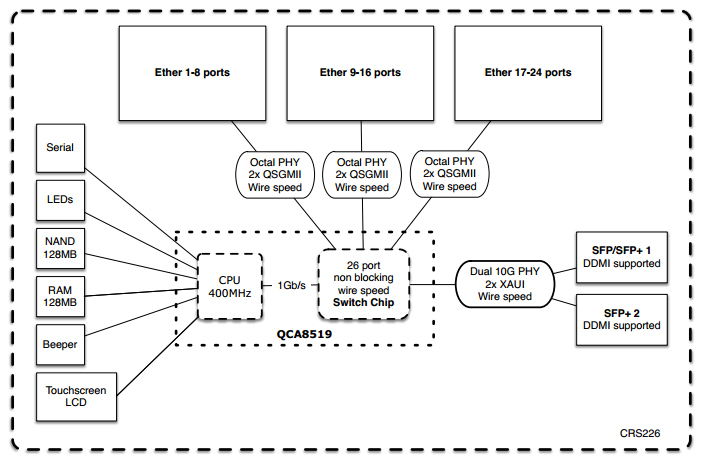

Block Diagram:
Specifications:
| CRS226-24G-2S+IN Specifications | |
|---|---|
| CPU | Qualcomm Atheros QCA8519 400 MHz |
| Memory | 64MB |
| Ethernet | 24x 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X |
| SFP | Two 10G Ethernet SFP+ cages (Mini-GBIC; SFP module not included), DDMI support. First port supports 1.25G/10G modules, second port only 10G modules |
| Expansion | None |
| Storage | 128MB Onboard NAND with multiple OS partition support |
| Serial port | One RJ45 serial port |
| Extras | Reset switch; beeper; voltage and temperature monitoring, touchscreen LCD |
| Power options | 8-28V, 24V 1.2A PSU included, PoE in: 8-30V on Ether1 |
| Dimensions | 285 x 145 x 45mm |
| Operating temperature | -35C to +65C tested |
| Operating System | MikroTik RouterOS v6, Level 5 license |
| Included |
|
Documentation:
Download the MikroTik CRS226-24G-2S+ Series Data Sheet (PDF).
- Pricing and product availability subject to change without notice.
