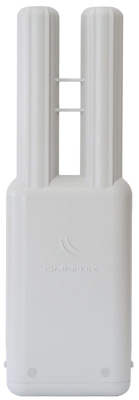

MikroTik OmniTIK UPA-5HnD
The perfect outdoor access point with dual-polarized omni antennas and PoE output
7.5dBi Integrated AP, 5Ghz Dual chain, 5xEthernet ports with PoE output
Get a Quote!
Click here to jump to more pricing!
Overview:
OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device.
Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.
LED signal indicators on it's back are fully customisable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.
The OmniTIK UPA also features power output on it's ethernet ports. Ports 2-5 can power other PoE capable devices (like SXT-5HPnD) with the same voltage as applied to the unit. Less power adapters to worry about!
Specifications:

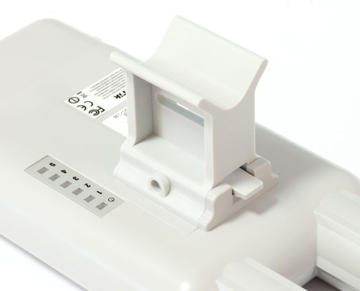

 Rear Hold View |

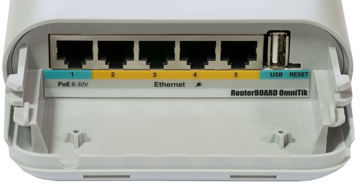

 Bottom View |
| OmniTIK UPA-5HnD Specifications | |
|---|---|
| CPU | Atheros AR7241 400MHz network processor |
| Memory | 32MB DDR SDRAM onboard memory |
| Boot loader | RouterBOOT |
| Data storage | 64MB onboard NAND memory chip |
| Ethernet | Five 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X, L2MTU frame size up to 2030 |
| Wireless cards | Wireless Built-in 5GHz 802.11a/n 2x2 MIMO |
| Antenna | Two 7.5dBi (+/-1dBi) omni with different polarities (ch0 horizontal, ch1 vertical) |
| Extras | Reset switch, Beeper, USB 2.0 port, Voltage monitor, Temperature monitor |
| LEDs | 5 programmable LEDs (Ethernetactivity by default), one power LED |
| Power options | Passive 9-30V PoE only. 16KV ESD protection on RF port |
| Power output | Supports PoE output on ports 2-5. Max current 500mA per port |
| Dimensions | 368 x 125 x 55mm |
| Weight | 520g |
| Operating temperature | -30C to +70C |
| Operating System | MikroTik RouterOS v5, Level4 license |
| Box contains |
|
| Wireless Specifications | |
|---|---|
| Antenna | Two 7.5dBi (+/-1dBi) omni with different polarities (ch0 horizontal, ch1 vertical) |
| RX sensitivity | 802.11a: -96 dBm @ 6Mbps to -80 dBm @ 54 Mbps 802.11n: -96 dBm @ MCS0 to -77 dBm @ MCS7 |
| TX power | 802.11a: 26dBm @ 6Mbps to 22dBm @ 54 Mbps 802.11n: 25dBm @ MCS0 to 19dBm @ MCS7 |
| Modulations | OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK |
 24V 2.5A power adapter |
 Metal ring (one) |
 PoE injector |
Antenna Patterns:

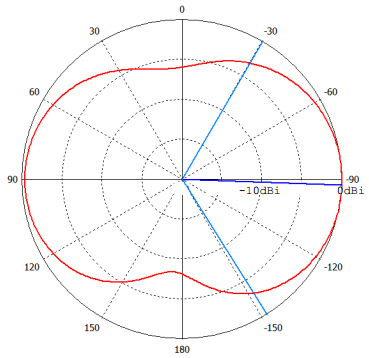

Horizontal Azimuth |

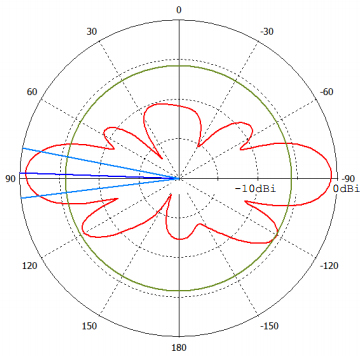

Horizontal Elevation |

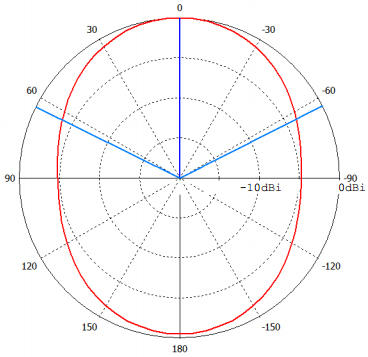

Vertical Azimuth |

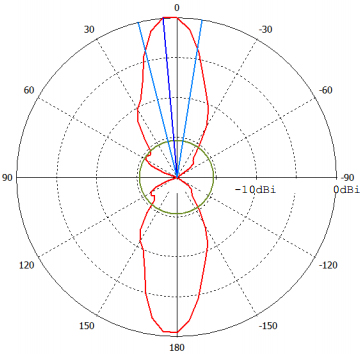

Vertical Elevation |
Documentation:
Download the MikroTik OmniTIK UPA-5HnD Data Sheet (PDF).
