MikroTik R2SHPn
The ultimate long haul device for 2GHz

MikroTik R2SHPn

MikroTik Products
MikroTik Interfaces
MikroTik R2SHPn 2Ghz miniPCI 802.11b/g/n single chain, 1600mW, MMCX connector
#R2SHPn
Get a Quote!

The new 2.4GHz super high power wireless card for long range links and powerful access points. This is the professional choice for reaching the last mile - 1600mW transmit power will give you the ability to reach even further than before. Up to 125Mbit throughput is possible with this device! Works in the 2.4GHz frequency (2192-2732MHz depending on country regulations).

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

The card comes with a preinstalled industrial grade heatsink, one MMCX connector and nine LED indicator lights.

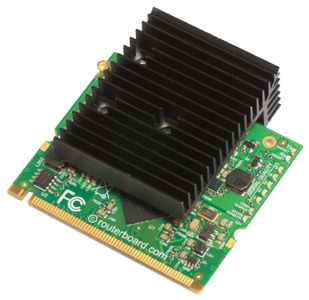

R2SHPn Top View

R2SHPn Specifications
Chipset AR9223
Frequency range 2.192-2.539MHz
Standards 802.11b/g/n
Max output power 1.6W
Format miniPCI
Dimensions 60 x 60 x 19mm (incl. heatsink)
Connectors 1x MMCX (single chain)
Features 9 LED indicators, ESD protection
Temperature Starting -5C to +65C (23 to 149F)
Operating -30C to +65C (-22 to 149F)
Power consumption Up to 10W at maximum power
Wireless Specifications
802.11b RX Sensitivity TX Power
1Mbit -93 32dBm
11Mbit -77 30dBm
802.11g RX Sensitivity TX Power
6Mbit -93 32dBm
54Mbit -77 29dBm
802.11n RX Sensitivity TX Power
MCS0 20MHz -93 32dBm
MCS0 40MHz -93 31dBm
MCS7 20MHz -74 28dBm
MCS7 40MHz -72 27dBm

Download the MikroTik R2SHPn Data Sheet (PDF).
