MikroTik R5SHPn 5Ghz miniPCI 802.11a/n single chain, 800mW, MMCX connector
#R5SHPn
Get a Quote!
Get a Quote!
The new 5GHz super high power wireless card for long range links and powerful access points. This is the professional choice for reaching the last mile - 800mW transmit power will give you the ability to reach even further than before.
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

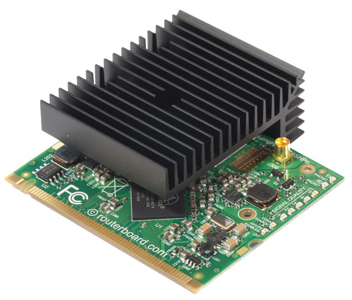

The card comes with a preinstalled industrial grade heatsink, one MMCX connector and nine LED indicator lights.
| R5SHPn Specifications | |
|---|---|
| Chipset | AR9220 |
| Frequency range | 4800-6075Mhz |
| Standards | 802.11a/n |
| Max output power | 800mW |
| Format | miniPCI |
| Dimensions | 60 x 60 x 19mm (incl. heatsink) |
| Connectors | 1x MMCX (single chain) |
| Features | 9 LED indicators, ESD protection |
| Temperature | Starting -5C to +65C (23 to 149F) Operating -30C to +65C (-22 to 149F) |
| Power consumption | Up to 10W at maximum power |
| Wireless Specifications | ||
|---|---|---|
| 802.11a | RX Sensitivity | TX Power |
| 6Mbit | -93 | 29dBm |
| 24Mbit | -89 | 27dBm |
| 36Mbit | -81 | 27dBm |
| 48Mbit | -79 | 27dBm |
| 54Mbit | -77 | 25dBm |
| 802.11n | RX Sensitivity | TX Power |
| MCS0 20MHz | -93 | 28dBm |
| MCS0 40MHz | -89 | 29dBm |
| MCS7 20MHz | -74 | 24dBm |
| MCS7 40MHz | -71 | 24dBm |
Download the MikroTik R5SHPn Data Sheet (PDF).
