MikroTik RouterBOARD 1100AHx2
13-port Gigabit Ethernet router with dual core CPU
MikroTik Products
MikroTik Ethernet Routers
MikroTik RouterBOARD 1100AHx2
1U rackmount, 13x Gigabit Ethernet, 1066MHz Dual Core CPU, 2GB RAM, RouterOS L6
1U rackmount, 13x Gigabit Ethernet, 1066MHz Dual Core CPU, 2GB RAM, RouterOS L6
#RB1100AHX2
Our Price: $349.00
Our Price: $349.00
Click here to jump to more pricing!
Overview:
- 1U rackmount
- 13x Gigabit Ethernet
- 1066MHz Dual Core CPU
- 2GB RAM
- RouterOS L6

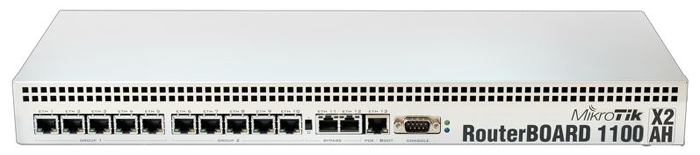

RB1100AHx2 is 1U rackmount Gigabit Ethernet router - with a dual core CPU, it can reach up to a million packets per second and supports hardware encryption!
It has thirteen individual gigabit Ethernet ports, two 5-port switch groups, and includes Ethernet bypass capability. 2GB of SODIMM RAM are included, there is one microSD card slot, a beeper and a serial port.
The RB1100AHx2 comes preinstalled in a 1U aluminium rackmount case, power supply and power plug, assembled and ready to deploy.

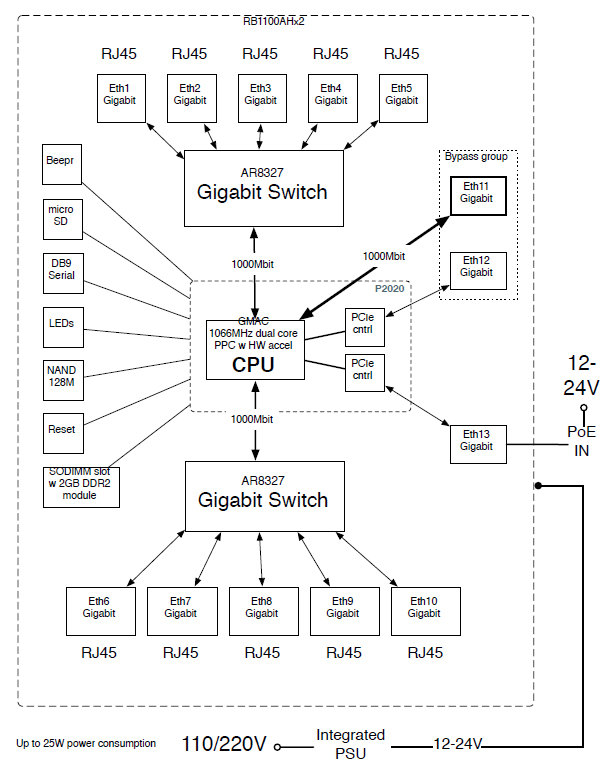

Block Diagram:
Specifications:
| RB1100AHx2 Specifications | |
|---|---|
| CPU | PowerPC P2020 dual core 1066MHz network CPU with IPsec accelerator |
| Memory | SODIMM DDR Slot, 2GB installed (RouterOS will use only up to 1.5GB) |
| Boot loader | RouterBOOT, 1Mbit Flash chip |
| Data storage | Onboard NAND memory chip, one microSD card slot |
| Ethernet | Thirteen 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X Includes switch to enable Ethernet bypass mode in two ports |
| miniPCI | none |
| Serial port | One DB9 RS232C asynchronous serial port |
| Extras | Reset switch, beeper, voltage and temperature sensors |
| Power options | Built-in power supply (IEC C14 standard connector 110/220V), PoE (12-24V on port 13) |
| Fan | Built in fans, and Fan headers |
| Dimensions | 44 x 176 x 442 mm |
| Weight | 1275g. Board only: 365g |
| Power consumption | Up to 3W |
| Operating temperature | -30C to +60C |
| Operating System | MikroTik RouterOS, Level 6 license |
| Box contains |
|
Performance Test Results:
| Performance Test Results | |||||||
|---|---|---|---|---|---|---|---|
| RB1100AHx2 (600Mhz) | All port test | RouterOS | |||||
| Model | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 1,690.0 | 1,108.6 | 704.0 | 2,985.0 | 406.0 | 4,988.9 |
| Bridging | 25 bridge filter rules | 412.0 | 270.3 | 396.0 | 1,679.0 | 308.0 | 3,784.7 |
| Routing | none (fast path) | 1,495.0 | 980.7 | 704.0 | 2,985.0 | 345.0 | 4,239.4 |
| Routing | 25 simple queues | 654.0 | 429.0 | 616.0 | 2,611.8 | 258.0 | 3,170.3 |
| Routing | 25 ip filter rules | 278.0 | 182.4 | 262.0 | 1,110.9 | 243.0 | 2,986.0 |
Documentation:
Download the MikroTik RB1100AHx2 Data Sheet (PDF).
- Pricing and product availability subject to change without notice.
