MikroTik RB14eU
4x miniPCI-e to PCI-e adapter
MikroTik Products
MikroTik Interfaces
MikroTik RB14eU 4x miniPCI-e to PCI-e adapter, Long and short bracket, 6x USB, 4x SIM slots
#RB14eU
Get a Quote!
Get a Quote!

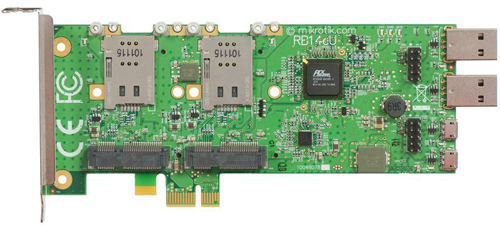

RouterBOARD 14eU is an adapter card for using four miniPCIe wireless cards and 3G miniPCIe cards in a PC with a PCIe slot. This gives you the ability to use our new R11e wireless interfaces in conventional PC computers.
SIM card slots are provided for all four interfaces, as well as USB ports to ensure USB connectivity to the host PC, which is required for 3G miniPCIe cards.
Comes with both low and regular profile brackets. Brackets include holes for mounting SMA connectors, or for using as cable exit holes.
| Model: | RB14e | RB14eU |
|---|---|---|
| Form factor | PCIe x1 | PCIe x1 |
| Number of miniPCIe slots | 4 | 4 |
| USB to PC connectors | - | 6 |
| Intended use | Wireless cards | Wireless cards and 3G cards |
| Bracket includes | Both normal, and low profile. Holes for cables provided (6/8) | |
| SIM slot | - | 4 |
Download the MikroTik RB14e Data Sheet (PDF).
