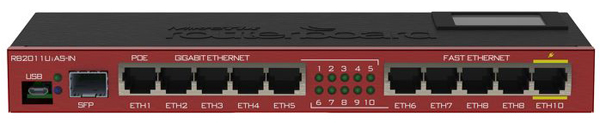

MikroTik RouterBOARD 2011UiAS-IN
Desktop metal case multifunctional router with five Gigabit Ethernet ports, five Fast Ethernet ports and SFP cage
Desktop metal case, 5xEthernet, 5xGigabit Ethernet, USB, LCD, PoE out on port 10, 600MHz CPU, 128MB RAM, RouterOS L5
Get a Quote!
Click here to jump to more pricing!
Overview:
- Desktop metal case
- 5x Ethernet
- 5x Gigabit Ethernet
- USB
- Touchscreen LCD panel
- PoE out on port 10
- 600MHz CPU
- 128MB RAM
- RouterOS L5
The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.
RouterBOARD 2011UiAS-IN, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, microUSB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
RouterBOARD 2011UiAS-IN comes with desktop enclosure, LCD panel and power supply.
Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.
Included 24V 0.8A power adapter
RB2011 Block Diagram:
Specifications:
| Feature / Model | RB2011iL-IN | RB2011iL-RM | RB2011iLS-IN | RB2011UiAS-IN | RB2011UiAS-RM |
|---|---|---|---|---|---|
| Enclosure | Desktop | Rackmount | Desktop | Desktop | Rackmount |
| SFP port | Yes | Yes | Yes | ||
| Power output | on port 10 | on port 10 | on port 10 | on port 10 | on port 10 |
| USB | - | - | - | - | - |
| Wireless | - | - | - | - | - |
| CPU | Atheros AR9344 600MHz | ||||
| Memory | 64MB DDR SDRAM onboard memory | 128MB DDR SDRAM onboard memory | |||
| Ethernet | Five 10/100 Mbit Fast Ethernet ports with Auto-MDI/X Five 10/100/1000 Mbit Gigabit Ethernet ports with Auto-MDI/X |
||||
| Expansion | - | - | - | SFP port (DDMI support) |
SFP port (DDMI support) |
| Extras | Reset button, Reset jumper | ||||
| LEDs | Power, User, Ethernet activity | ||||
| Power options | Jack 8-28V DC; PoE: 8-28V DC on Ether1 (Non 802.3af). | ||||
| Board dimensions | 214 mm x 86 mm | 214 mm x 86 mm | |||
| Weight | 151g | 146g | |||
| Power consumption | 8W max | 15W max | |||
| Operating System | MikroTik RouterOS, L4 license | MikroTik RouterOS, L5 license | |||
| Package includes | RB2011, power supply | ||||
Performance Test Results:
| Performance Test Results | |||||||
|---|---|---|---|---|---|---|---|
| RB2011UiAS-IN (600Mhz) | 100M & 1G port test | RouterOS | |||||
| Model | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 269.6 | 176.9 | 232.0 | 983.7 | 122.0 | 1,499.1 |
| Bridging | 25 bridge filter rules | 87.6 | 57.5 | 86.0 | 364.6 | 83.6 | 1,027.3 |
| Routing | none (fast path) | 226.9 | 148.8 | 210.0 | 890.4 | 122.0 | 1,499.1 |
| Routing | 25 simple queues | 106.6 | 69.9 | 103.9 | 440.5 | 100.5 | 1,234.9 |
| Routing | 25 ip filter rules | 60.5 | 39.7 | 59.6 | 252.7 | 56.8 | 698.0 |
Documentation:
Download the MikroTik RB2011 Series Data Sheet (PDF).
