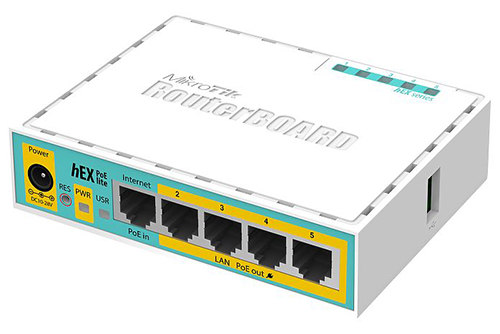

MikroTik RouterBOARD hEX PoE lite
5x Ethernet with PoE output for four ports, USB, 650MHz CPU, 64MB RAM, RouterOS L4
MikroTik Products
MikroTik Ethernet Routers
Click here to jump to more pricing!
Overview:
The hEX PoE lite is a small five port ethernet router in a plastic case, it has a USB 2.0 port and PoE output. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It is affordable, small and easy to use. With it’s compact design and clean looks, it will fit perfectly into any SOHO environment.
Specifications:
| RB750UPr2 Specifications | |
|---|---|
| Product code | RB750UPr2 |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 113x89x28mm. Weight without packaging and cables: 129g |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 51 W |
| Max power consumption without attachments | 3 W |
| PoE-out | |
| PoE-out ports | Ether2-Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input < 30 V) | 1 A |
| Max total out (A) | 2 A |
| Ethernet | |
| 10/100 Ethernet ports | 5 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
| Included parts | |
| Included parts | 24V 2.5A power adapter IEC cord |
Documentation:
Download the MikroTik RouterBOARD hEX PoE lite Data Sheet (PDF).
- Pricing and product availability subject to change without notice.
