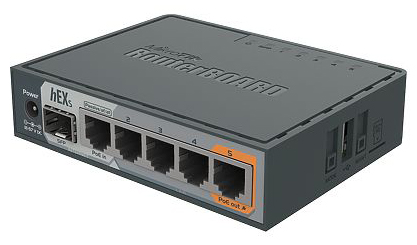

MikroTik RouterBOARD hEX S
5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package
MikroTik Products
MikroTik Ethernet Routers
Click here to jump to more pricing!
Overview:
The hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Specifications:
| RB760iGS Specifications | |
|---|---|
| Product code | RB760iGS |
| Architecture | MMIPS |
| CPU | MT7621A |
| CPU core count | 2 |
| CPU nominal frequency | 880 MHz |
| CPU Threads count | 4 |
| Dimensions | 113 x 89 x 28 mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 24 W |
| Max power consumption without attachments | 6 W |
| PoE-out | |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input < 30 V) | 500 mA |
| Max out per port output (input > 30 V) | 500 mA |
| Max total out (A) | 500 mA |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Fiber | |
| SFP ports | 1 |
| Peripherals | |
| Memory card type | microSD |
| Memory Cards | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
| Included parts | |
| Included parts | 24V 1.2A power adapter |
Documentation:
Download the MikroTik RouterBOARD hEX S Data Sheet (PDF).
