MikroTik RB951G-2HnD
2.4Ghz 1000mW AP, 5x Gigabit Ethernet, USB, 600MHz CPU, 128MB RAM
2.4Ghz 1000mW AP, 5x Gigabit Ethernet, USB, 600MHz CPU, 128MB RAM
#RB951G-2HnD
Get a Quote!
Get a Quote!
Click here to jump to more pricing!
Overview:

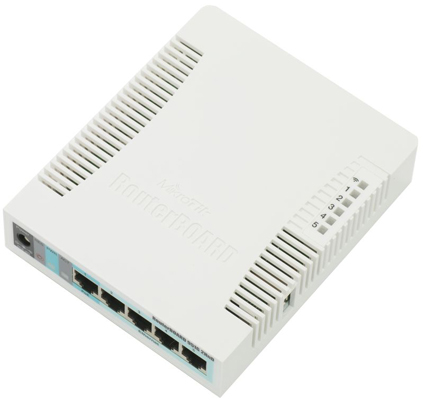

The RB951G-2HnD is a wireless SOHO Gigabit AP with a new generation Atheros CPU and more processing power. It has five Gigabit Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in.
In comparison with previous model RB751G-2HnD, it has more powerful 600Mhz CPU (instead of 400Mhz), more RAM - 128MB instead of 64MB, same form factor and price. The device is very small and will look good in any home or office, wall mounting anchor holes are provided.
Specifications:
| RB951G-2HnD Specifications | |
|---|---|
| Features | RB951G-2HnD (Gigabit, USB, 2GHz, 802.11n, dual chain) |
| CPU | Atheros AR9344 600MHz CPU |
| Memory | 128MB DDR2 onboard memory |
| Ethernet | Five independent 10/100/1000 Gigabit Ethernet ports |
| LEDs | Power, NAND activity, 5 Ethernet LEDs, wireless activity LED |
| Power options | PoE: 8-30V DC on Ether1 (Non 802.3af). Jack: 8-30V DC |
| Dimensions | 113 x 138 x 29mm |
| Weight | Without packaging and PSU: 232g, full weight in package: 420g |
| Power consumption | Up to 7W |
| Operating temperature | -20C to +50C |
| Operating System | MikroTik RouterOS, Level4 license |
| Box contains |
|
| Wireless Specifications | |
|---|---|
| Antenna | 2x2 MIMO PIF antennas, max gain 2.5dBi |
| RX sensitivity | 802.11g: -96dBm @ 6Mbit/s to -80dBm @ 54Mbit/s 802.11n: -96dBm @ MCS0 to -78dBm @ MCS7 |
| TX power | 802.11g: 30dBm @ 6Mbps to 25dBm @ 54 Mbps 802.11n: 30dBm @ MCS0 to 23dBm @ MCS7 |
| Modulations | OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK |
Performance Test Results:
| Performance Test Results | |||||||
|---|---|---|---|---|---|---|---|
| RB951G-2HnD (600Mhz) | Gigabit port test | RouterOS | |||||
| Model | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 269.6 | 176.9 | 232.0 | 983.7 | 81.0 | 995.3 |
| Bridging | 25 bridge filter rules | 87.6 | 57.5 | 86.0 | 364.6 | 81.0 | 995.3 |
| Routing | none (fast path) | 226.9 | 148.8 | 210.0 | 890.4 | 81.0 | 995.3 |
| Routing | 25 simple queues | 106.6 | 69.9 | 103.9 | 440.5 | 81.0 | 995.3 |
| Routing | 25 ip filter rules | 60.5 | 39.7 | 59.6 | 252.7 | 56.8 | 698.0 |
Documentation:
Download the MikroTik RB951G-2HnD Data Sheet (PDF).
