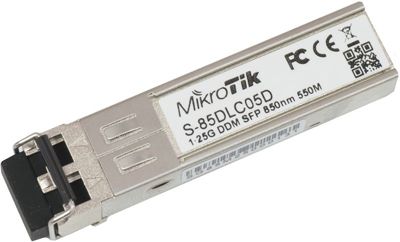

MikroTik S-85DLC05D
1.25G SFP transceiver with a 850nm Dual LC connector
MikroTik Products
MikroTik Interfaces
S-85DLC05D is a 1.25G SFP transceiver with a 850nm Dual LC connector, for up to 550 meter Multi Mode fiber connection, with DDMI.
Units are tested and compatible with RB260GS, RB2011LS, RB2011LS-IN, RB2011UAS-IN, RB2011UAS-RM, RB2011UAS-2HnD, RB2011UAS-2HnD-IN and CCR1036-12G-4S. Units are compatible with non-MikroTik SFP devices as well.
| S-85DLC05D Specifications | |
|---|---|
| Data Rate | 1.25Gbps |
| Wavelength | 850nm |
| Mode | Multi Mode |
| Distance | 550M |
| Connector | Dual LC |
| Format | SFP |
| Transmit | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Output Opt. Power | -9 | - | -3 | dBm |
| Receive | ||||
| Avg Rx sensitivity | -0 | - | -20 | dBm |
| Max Received pwr | -2 | - | - | dBm |
| LOS De-assert | - | - | -24 | dBm |
| LOS Assert | -35 | - | - | dBm |
Download the MikroTik SFP Transceivers Data Sheet (PDF).
