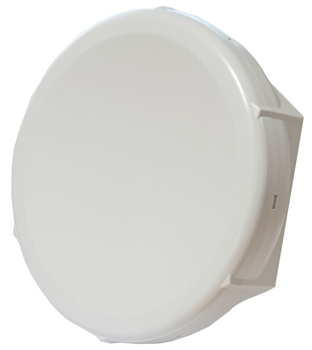

MikroTik SEXTANT G 5HPnD
18dBi integrated CPE/Backbone, Gigabit Ethernet
18dBi integrated CPE/Backbone, Gigabit Ethernet
#RBSEXTANTG5HPnD
Get a Quote!
Get a Quote!
Click here to jump to more pricing!
Overview:
The SEXTANT is a 18dBi 5GHz antenna with a built in RB911G router. It has two polarizations to give you all benefits of 2x2 MIMO in 802.11n.
Inside is the high power RB911 dual chain wireless device, with high performance, high output power, and a Gigabit Ethernet port, to fully utilize the benefit of 802.11n high speed wireless.
Easy to use and quick to deploy, SEXTANT is ideal for point to point links.
Specifications:
| SEXTANT G Specifications | |
|---|---|
| CPU | Atheros AR9342 600MHz network processor |
| Memory | 32MB DDR SDRAM onboard memory |
| Data storage | Onboard NAND memory chip |
| Ethernet | One 10/100/1000 Mbit with Fast Ethernet with Auto MDI-X |
| Wireless | 5GHz 802.11a/n, 2x2 MIMO, 2x MMCX |
| LEDs | Power, NAND activity, 5 user LEDs |
| Power options | Power over Ethernet: 10..28V DC (except power over datalines). No power jack. Up to 11W consumption. |
| Dimensions | Ø250mm, height 90mm |
| Weight | 830g |
| Power consumption | 11W |
| Operating temperature | -30C to +70C |
| Operating System | MikroTik RouterOS, Level3 license |
| Box contains |
|
| Wireless Specifications | |
|---|---|
| TX/RX at MCS0 | 30dBm / -96dBm |
| TX/RX at MCS7 | 24dBm / -78dBm |
| TX/RX at 6Mbit | 30dBm / -96dBm |
| TX/RX at 54Mbit | 27dBm / -80dBm |
| Frequency range | 4900-5920MHz |
 Metal rings (two) |
 PoE injector |
Performance Test Results:
| Performance Test Results | |||||||
|---|---|---|---|---|---|---|---|
| RBSEXTANTG5HPnD (600Mhz) | Gigabit port test | RouterOS | |||||
| Model | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 269.6 | 176.9 | 232.0 | 983.7 | 81.0 | 995.3 |
| Bridging | 25 bridge filter rules | 87.6 | 57.5 | 86.0 | 364.6 | 81.0 | 995.3 |
| Routing | none (fast path) | 226.9 | 148.8 | 210.0 | 890.4 | 81.0 | 995.3 |
| Routing | 25 simple queues | 106.6 | 69.9 | 103.9 | 440.5 | 81.0 | 995.3 |
| Routing | 25 ip filter rules | 60.5 | 39.7 | 59.6 | 252.7 | 56.8 | 698.0 |
Antenna Patterns:
| SEXTANT G Antenna Patterns | |
|---|---|
| Frequencies | 5.17 - 5.825 GHz |
| Gain | 18dBi |
| VSWR | 1.6:1 |
| 3 dB Beam-Width, H-Plane | 16.8 ° |
| 3 dB Beam-Width, E-Plane, typ. | 22.8 ° |
| Polarization | Linear, Vertical and Horizontal |
| Port to Port Isolation | - 35 dB |
Documentation:
Download the MikroTik SEXTANT G Data Sheet (PDF).
