MikroTik SXTsq Lite5
Low-cost small-size 16dBi 5GHz dual chain integrated CPE/Backbone
16dBi 5GHz dual chain integrated CPE/Backbone
Get a Quote!
Click here to jump to more pricing!
Overview:

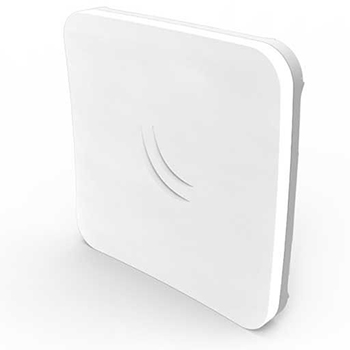

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner (see photos for comparison).
The enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings. The device includes one 10/100 Mbit ethernet port. There is also an easily accessilble grounding connection to protect it against lightning.
The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).
- SXTsq Lite5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- SXTsq Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications:
| SXTsq Lite5 Specifications | |
|---|---|
| Specifications | |
| Architecture | MIPSBE |
| CPU | Atheros AR9344 |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Dimensions | 129 x 129 x 34mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| MTBF | Approximately 100'000 hours at 25C |
| Powering | |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| FAN count | Passive |
| Wireless Specifications | |
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 16 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
Included parts
 24 V 0.38 A power adapter |
 Metal ring (one) |
 PoE injector |
Wireless Specifications:
| Wireless Specifications | ||
|---|---|---|
| RATE (5 GHz) | Tx (dBm) (600Mhz) | Rx (dBm) |
| 6MBit/s | 25 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 19 | -75 |
Documentation:
Download the MikroTik SXTsq Lite5 Data Sheet (PDF).
- Pricing and product availability subject to change without notice.
