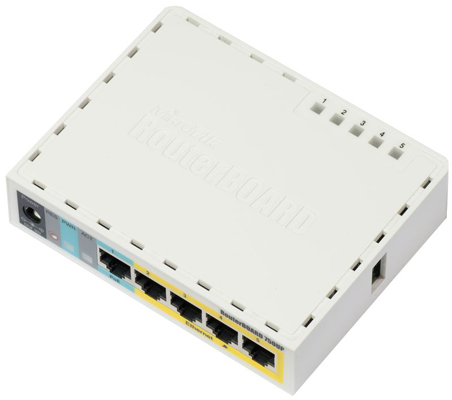

MikroTik RouterBOARD 750UP
Five Ethernet ports SOHO router in a nice plastic case, USB 2.0 port and PoE output
Sorry, this product is no longer available, replaced by the MikroTik RouterBOARD hEX PoE lite (RB750UPr2).
Overview:
- 5 x Ethernet with PoE output for all ports
- USB 2.0 port
- 400MHz CPU
- 32MB RAM
- RouterOS L4
RB750UP is a small five port ethernet router in a nice plastic case, USB 2.0 port and PoE output. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 500mA per port, Ethernet ports are shielded.
It is affordable, small, good looking and easy to use - It's probably the most affordable MPLS capable router on the market. No more compromise between price and features - RB750 series has both.
With it's compact design and clean looks, it will fit perfectly into any SOHO environment.
Included 24V 2.5A power adapter
Specifications:
| RB750UP Specifications | |
|---|---|
| CPU | AR7241 400MHz CPU |
| Memory | 32MB DDR SDRAM onboard memory |
| Boot loader | RouterBOOT |
| Data storage | 64MB onboard NAND memory chip |
| Ethernet | Five 10/100 Mbit/s Fast Ethernet ports with Auto-MDI/X. Hardware switch chip and port mirror support. Shielded connectors. |
| miniPCI | none |
| Extras | One USB 2.0 port, Reset switch |
| Serial port | no serial port |
| LEDs | Power, NAND activity, 5 Ethernet LEDs |
| Power options | PoE: 8-30V DC on Ether1 (Non 802.3af). Jack: 8-30V DC |
| Power output | Supports PoE output on ports 2-5. Max current 500mA per port |
| Dimensions | 113 x 89 x 28mm |
| Weight | 130g without packaging and cables |
| Power consumption | Up to 3W |
| Operating temperature | -30C to +60C |
| Operating System | MikroTik RouterOS, Level4 license |
| Box contains |
|
Performance Test Results:
| Performance Test Results | |||||||
|---|---|---|---|---|---|---|---|
| RB750UP (400Mhz) | 100M port test | RouterOS | |||||
| Model | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 194.0 | 127.3 | 117.0 | 496.1 | 40.3 | 495.2 |
| Bridging | 25 bridge filter rules | 53.7 | 35.2 | 52.3 | 221.9 | 40.3 | 495.2 |
| Routing | none (fast path) | 183.7 | 120.5 | 117.0 | 496.1 | 40.3 | 495.2 |
| Routing | 25 simple queues | 92.8 | 60.8 | 88.5 | 375.1 | 40.3 | 495.2 |
| Routing | 25 ip filter rules | 37.5 | 24.6 | 38.4 | 162.6 | 37.6 | 462.4 |
Documentation:
Download the MikroTik RB750UP Data Sheet (PDF).
