MikroTik S-3553LC20D
1.25G Single Mode optical SFP module with a LC connector
MikroTik Products
MikroTik Interfaces

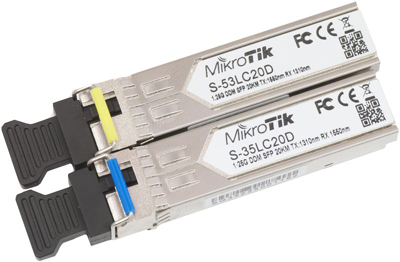

S-35/53LC20D is a pair of SFP transceivers, the S-35LC20D is a 1.25G Single Mode optical SFP module with a LC connector, T1310nm/R1550nm, which works for connections up to 20km and supports DDMI. The S-53LC20D is a 1.25G Single Mode optical SFP transeiver with an LC connector,T1550nm/R1310nm, which works for connections up to 20km and supports DDMI.
Units are tested and compatible with RB260GS, RB2011LS, RB2011LS-IN, RB2011UAS-IN, RB2011UAS-RM, RB2011UAS-2HnD, RB2011UAS-2HnD-IN CCR1036-12G-4S. Units are compatible with non-MikroTik SFP devices as well.
| S-3553LC20D Specifications | |
|---|---|
| Data Rate | 1.25Gbps |
| Mode | Single Mode |
| Distance | 20KM |
| Connector | LC |
| Format | SFP |
| Transmit | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Output Opt. Power | -9 | - | -3 | dBm |
| Receive | ||||
| Avg Rx sensitivity | - | - | -24 | dBm |
| Max Received pwr | 0 | - | - | dBm |
| LOS De-assert | - | - | -24 | dBm |
| LOS Assert | -36 | - | - | dBm |
Download the MikroTik SFP Transceivers Data Sheet (PDF).
